  1. Solutions
  2. Direct-drive in-wheel motors

Direct-drive in-wheel motors

S400

M700

M1100

L1500

Direct-drive in-wheel motors

S400

M700

M1100

L1500

S400

Designed out of the box for light-weight electric and hybrid vehicles, this small and powerful in-wheel motor is intended for light to medium load direct-drive applications and features possible integration with a standard disc or drum brake.

Perfect for medium, small or micro EVs in need of additional space and an exciting launch power.

48V nominal100V nominal
Added weight17.617.6 kg
Peak torque400Nm400 Nm
Top speed
[at nominal voltage]
750 rpm1565 rpm
Peak power
[at nominal voltage]
19.5 kW40 kW
Continuous power
[at nominal voltage]
11 kW (liquid cooling)23 kW (liquid cooling)

M700

The Elaphe™ M700 motor is an extremely compact high-torque in-wheel motor, designed to fit inside a standard 15- or 16-inch rim. With over 700 Nm of peak torque, 75 kW of peak power and 50 kW of continuous power, this liquid-cooled motor is a perfect fit for a wide range of passenger car classes. It’s compatibility with a standard disk or drum brake enables the use of the motor in both 2iWD and 4iWD configurations.

Coupled with Elaphe’s powertrain electronics and HMI, it offers an ideal platform for the next generation of light-weight, efficient and modular electric vehicle powertrain designs.

300V nominal
Added weight23 kg
Peak torque>700 Nm
Continuous torque400 Nm
Top speed
[at nominal voltage]
1500 rpm
Peak power
[at nominal voltage]
75 kW
Continuous power
[at nominal voltage]
50 kW (liquid cooling)

M1100

Heavy-duty applications are a perfect fit for the M1100, which is capable of bearing substantial radial loads (more than 2 tons per wheel). The motor is designed to operate in the toughest of conditions, making it ideal for train, bus and multi-purpose vehicle hybridization and electrification in the most demanding environments.

Engineering for integration with friction brakes available upon request.

370V nominal
Added weight40 kg
Peak torque1100 Nm
Continuous torque700 Nm
Top speed
[at nominal voltage]
up to 1160 rpm
Peak power
[at nominal voltage]
up to 90 kW
Continuous power
[at nominal voltage]
70 kW (liquid cooling)

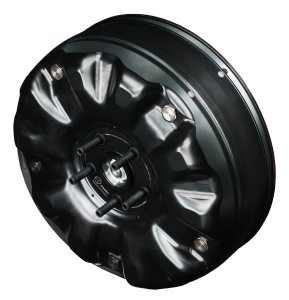

L1500

The most powerful compact in-wheel motor ever produced.  With an integrated standard disc brake, a standard outer caliper and a standard hub bearing, it is designed to fit the original vehicle knuckle due to an innovative packaging concept. It also comes with an integration of EPB.

Built for high-power requirements, versatility and customization, this motor fits perfectly to new mobility solutions, pickup-trucks, SUVs and powerful sedans.

370V nominal
Added weight34,8 kg
Peak torque1500 Nm
Continuous torque650 Nm
Top speed
[at nominal voltage]
1480 rpm
Peak power
[at nominal voltage]
110 kW
Continuous power
[at nominal voltage]
77 kW (liquid cooling)
