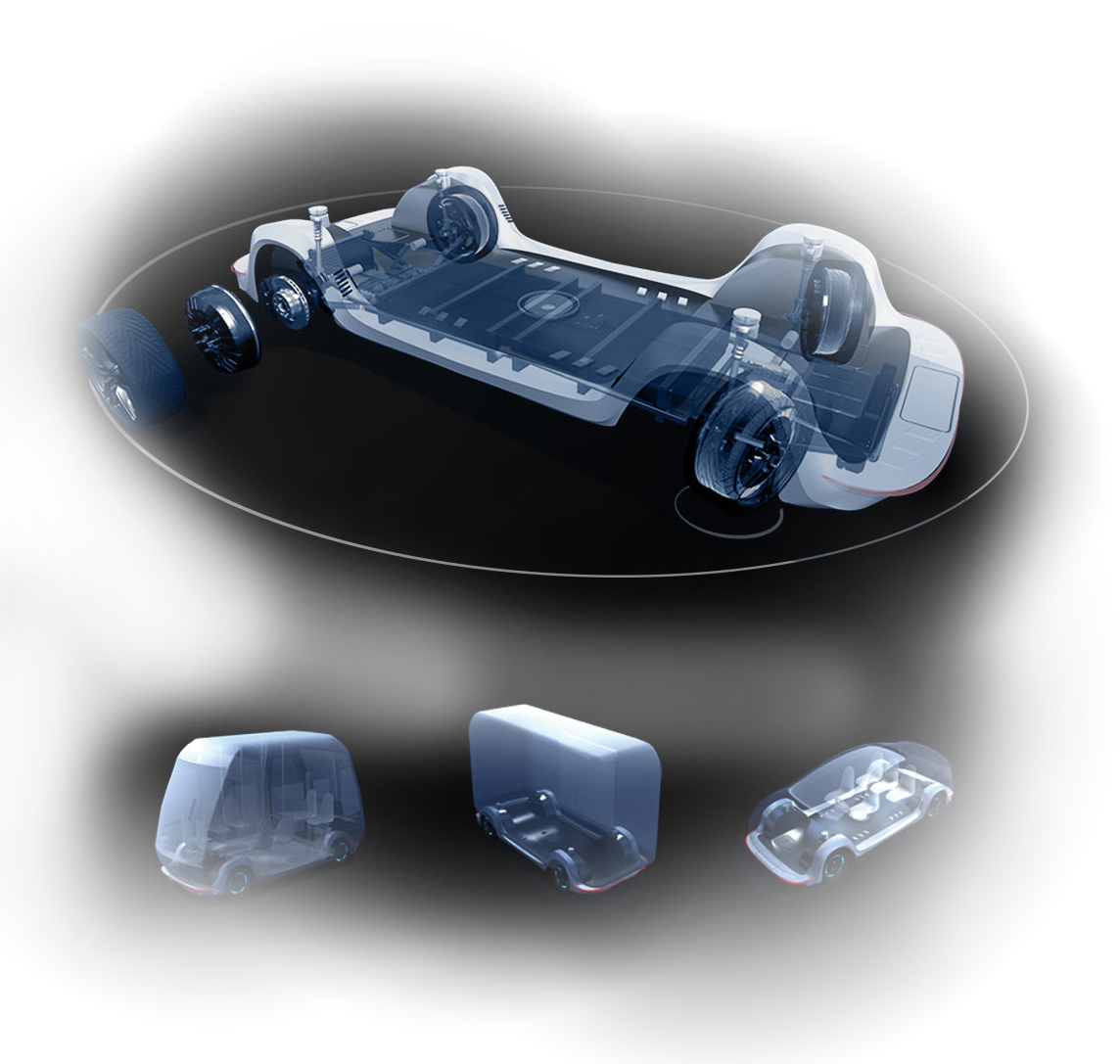

Direct drive
architecture

Smart use of space

Longer range on a single charge

Independent wheel control

Enabler of new vehicle designs

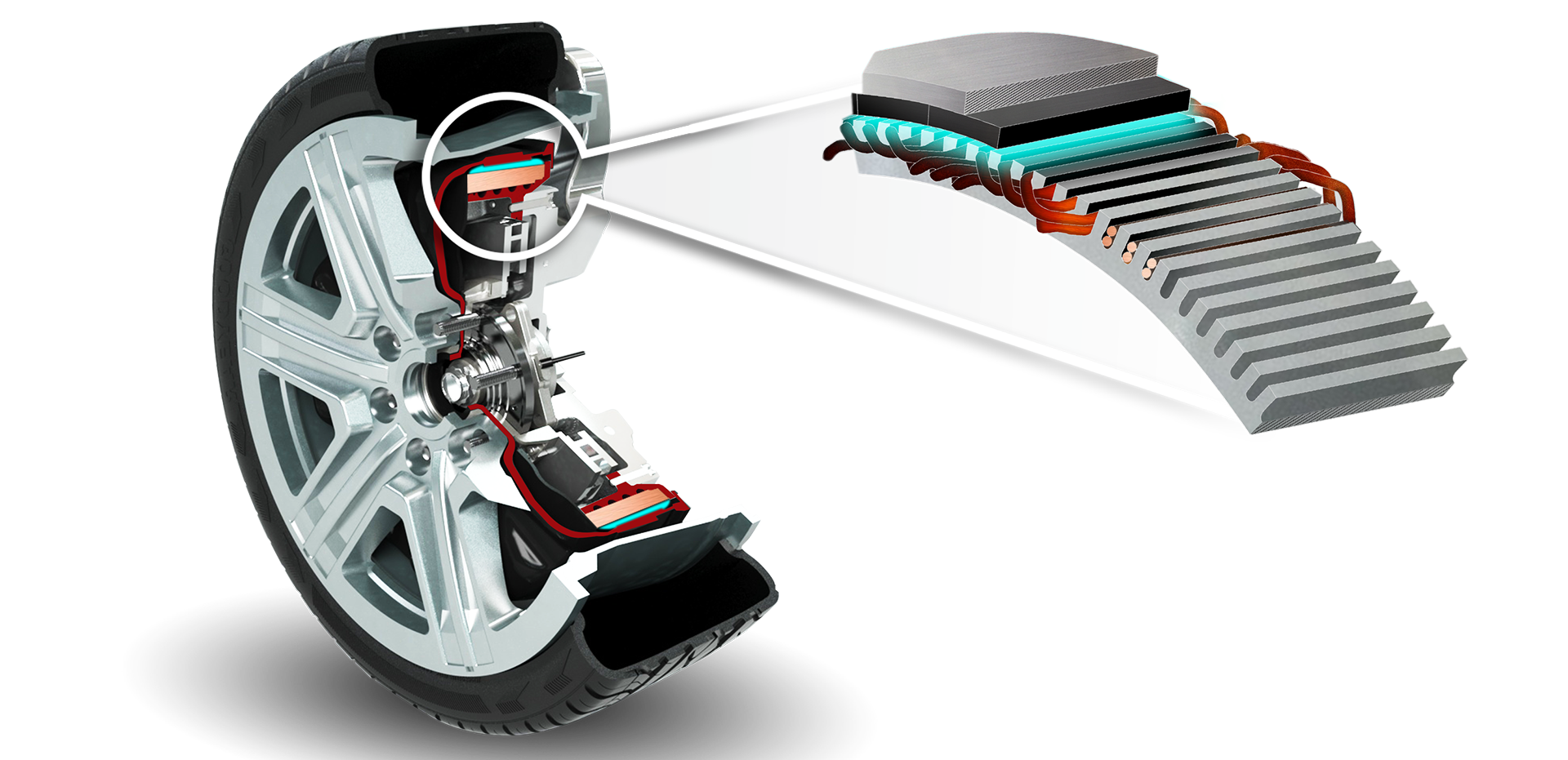

Technology
Max output torque
Continuous output torque
Peak power
Motor efficiency
System efficiency*
Active part specific torque
Compact IWM
Top output speed
Continuous power
Rim size
Added weight

*motor and inveter

Direct drive
>4000 Nm
> 2000 Nm
> 400 kW
> 97 %
> 95 %
Up to 100 Nm/kg
> 500 Nm/liter
> 3000 RPM
> 200 kW
16-23”
25-65 kg

Direct drive
architecture

Control
technology

20x faster wheel response

No gears, no transmission, low inertia

Immediate torque direction change

>500 Nm/ms of torque response

Automotive qualification

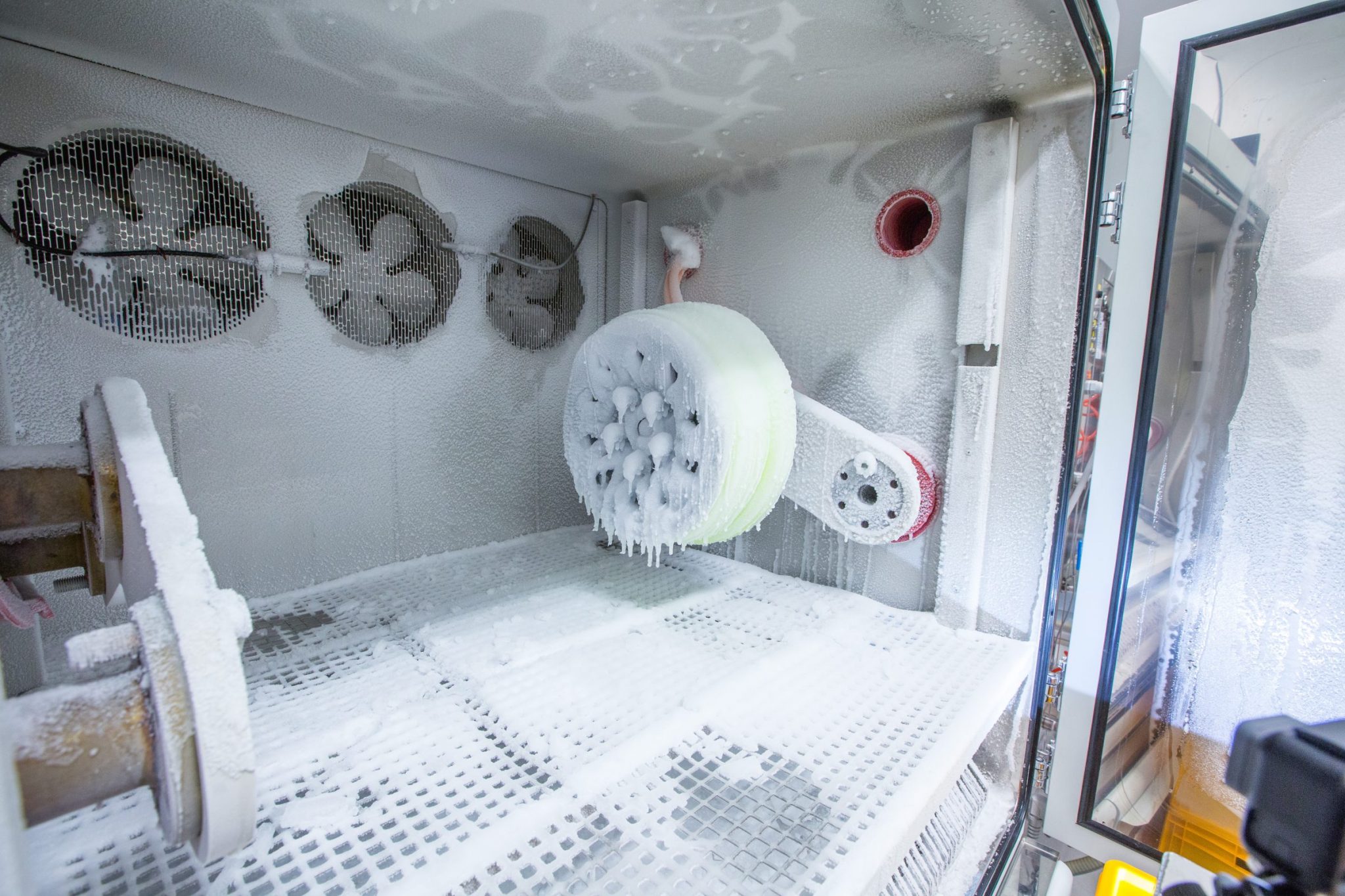

Automotive qualificationElaphe has an in-house testing centre for performance, endurance and product validation for e-motor systems.

24/7 monitoring

We provide full-day monitoring and less than 10 % of downtime at long-lasting tests.

Flexibility

Our modular measuring stations enable flexibility and quick adaptation to different requirements, including test scope adaptation.

Custom solutions

We deliver customized solutions that meet your unique requirements – and have already performed a track record of 100+ in-wheel system validation.

Comprehensive support

We support in validation strategy, development of dedicated testing set-ups, time-optimized test execution, data processing and results interpretation.

Download testing center brochure
